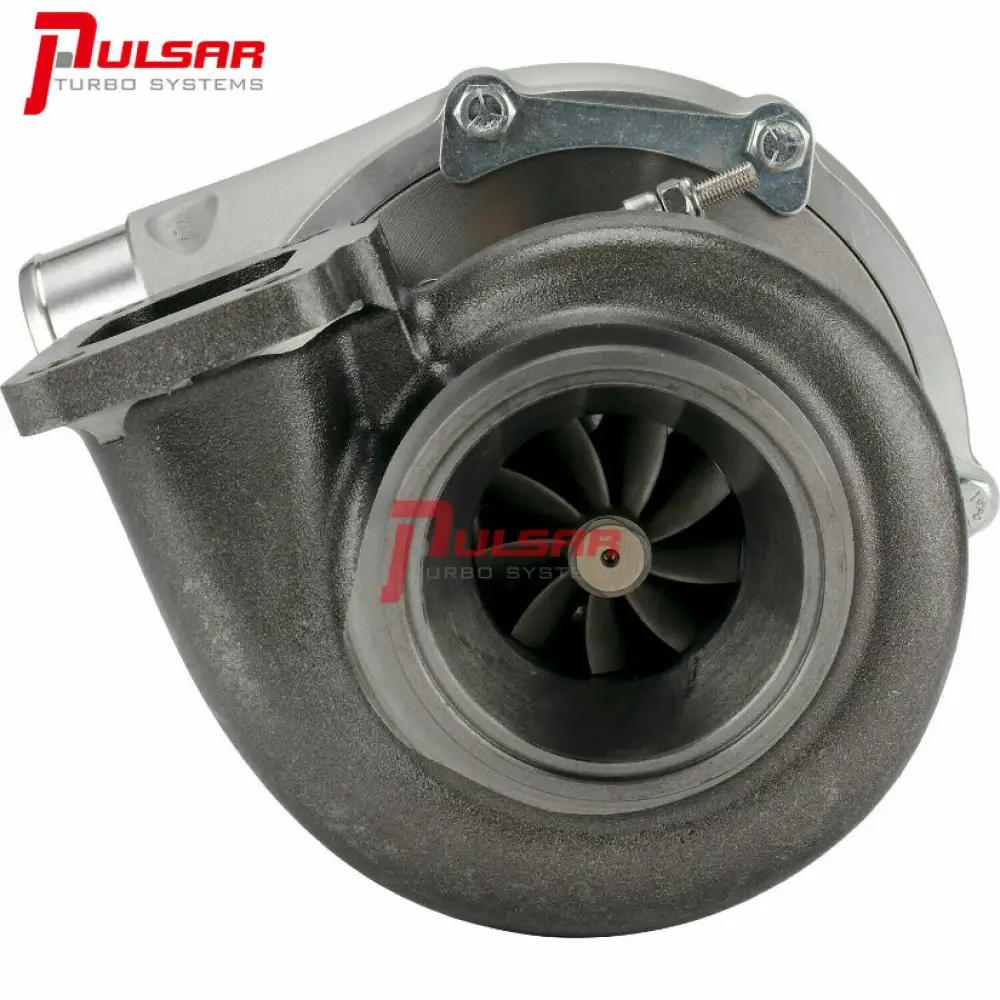

Pulsar PSR5855G 30-770 Turbocharger

Pulsar PSR5855G

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended displacement 2.0 to 3.5 litres with power outputs up to 770hp possible.
• Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
• 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
• 9 Blade G-Aero Inconel 713c Turbine Wheel
• Some IWG housing T flange options supplied with an adapter - please check images.
• Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

SPEC

Compressor Wheel: 58*71mm

Turbine Wheel: 60*55mm

Compressor Inlet: 4″ Hose

Compressor Outlet: 2″ Hose

Turbine Inlet: T3 or T4

Turbine Outlet: 3″ V-Band

Water Ports: 2-M14 X 1.5

Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed

Oil Outlet: Std T3 Oil Drain Flange

It's strongly recommended to run water cooling to aid reliability.
