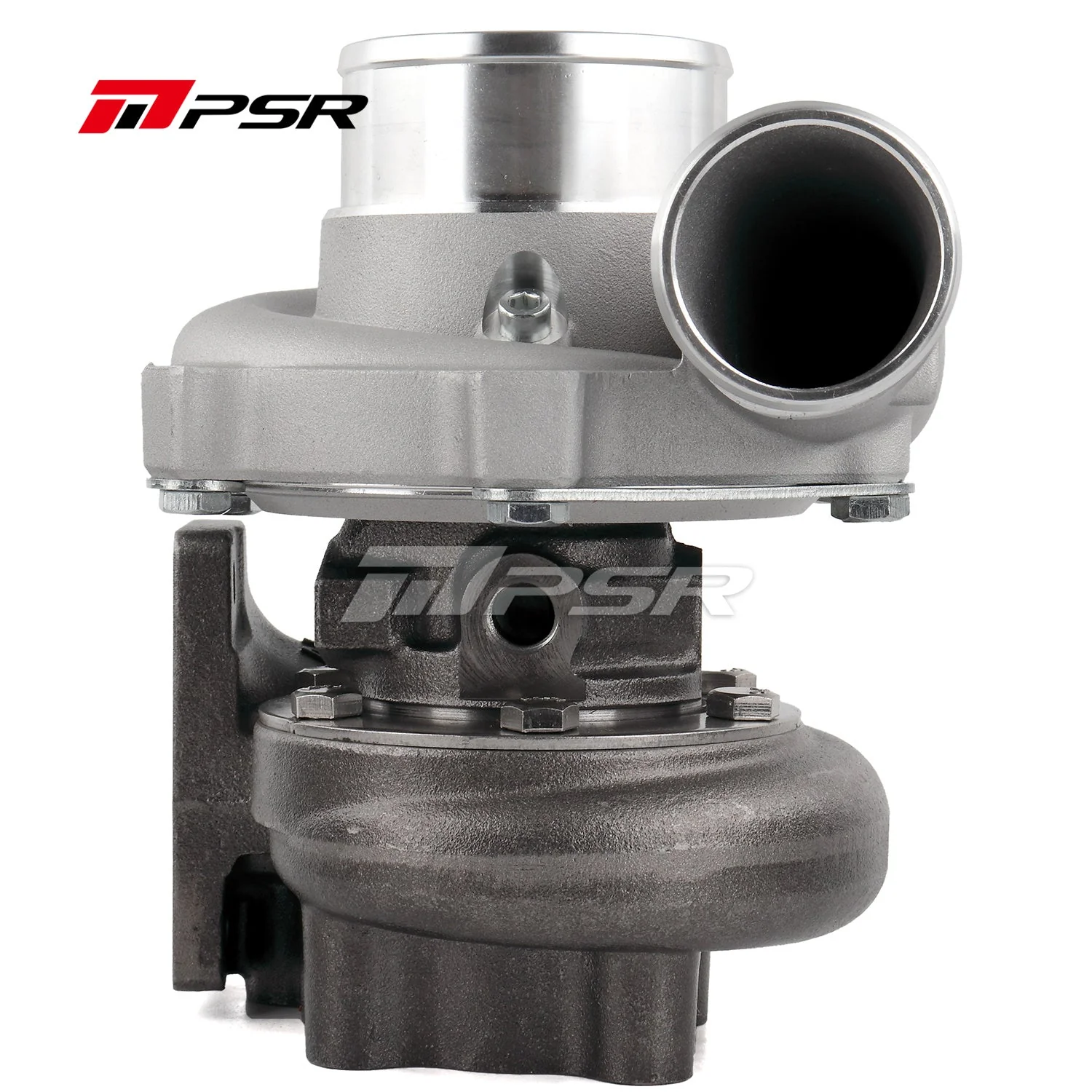

Pulsar PSR GTX2860R GEN2 TURBO
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9-blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~40 lb/min, rated @ 475 FWHP
Description
- Compressor Wheel: 45.64/60.07/62mm
- Turbine Wheel: 54/47mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25 or 2.5″ V-Band
- Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
Select Compressor Housing Options
Select Turbine Houisng Options
Select Actuator Options
From $171.21
Original: $570.69
-70%Pulsar PSR GTX2860R GEN2 TURBO—
$570.69
$171.21More Images
Pulsar PSR GTX2860R GEN2 TURBO
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9-blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~40 lb/min, rated @ 475 FWHP
Description
- Compressor Wheel: 45.64/60.07/62mm
- Turbine Wheel: 54/47mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25 or 2.5″ V-Band
- Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Dual Ceramic Ball Bearing System
- 8 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 9-blade Turbine Wheel
- Gen2 Cover Integrated with the Speed Sensor Port
- 0.64, 0.86A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel, etc. turbine housings in option
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~40 lb/min, rated @ 475 FWHP
Description
- Compressor Wheel: 45.64/60.07/62mm
- Turbine Wheel: 54/47mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T25 or 2.5″ V-Band
- Turbine Outlet: 5 Bolt or 3″ V-Band (3.55″ OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
