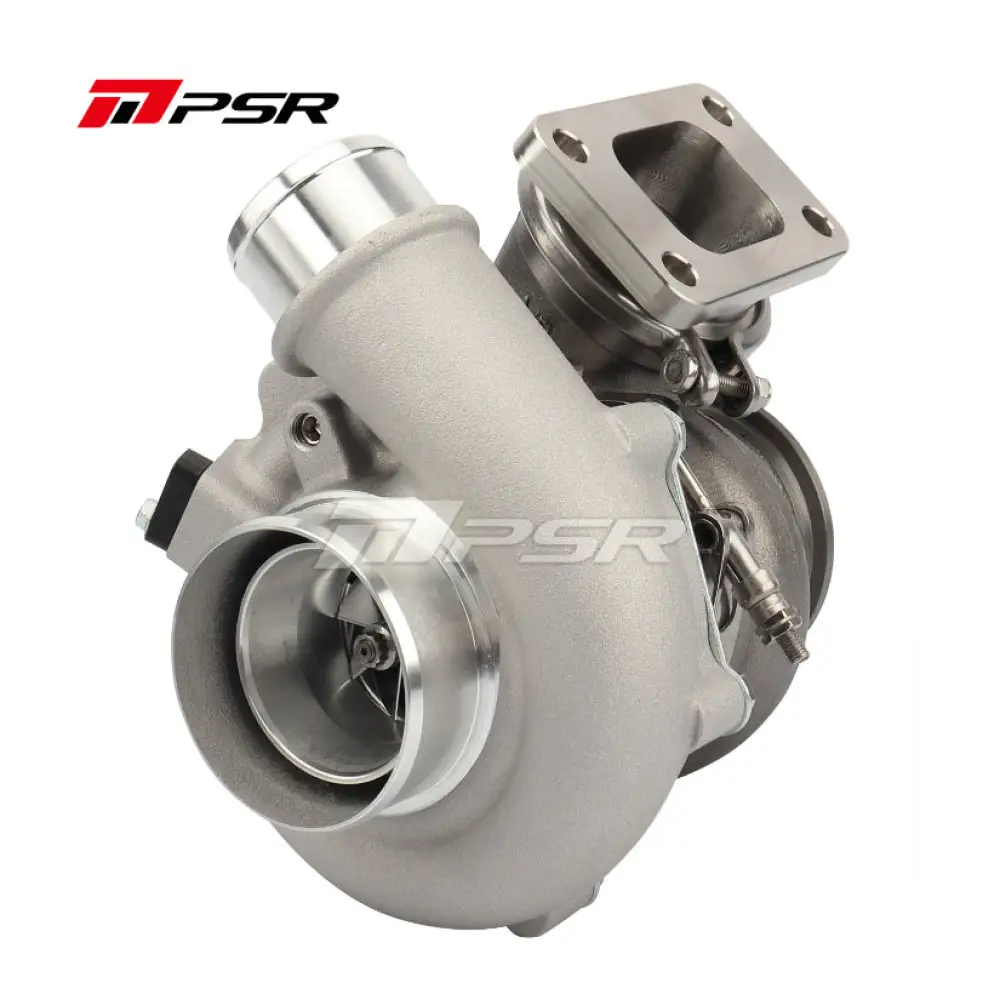

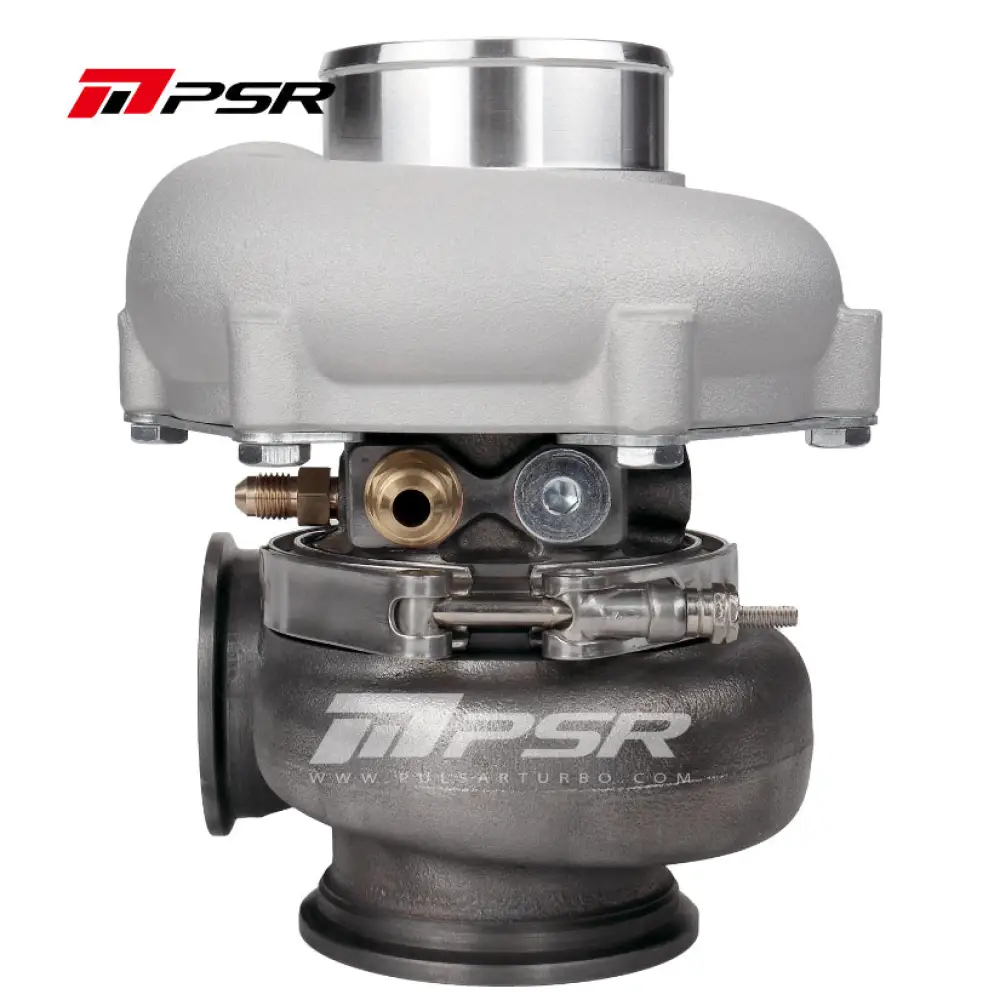

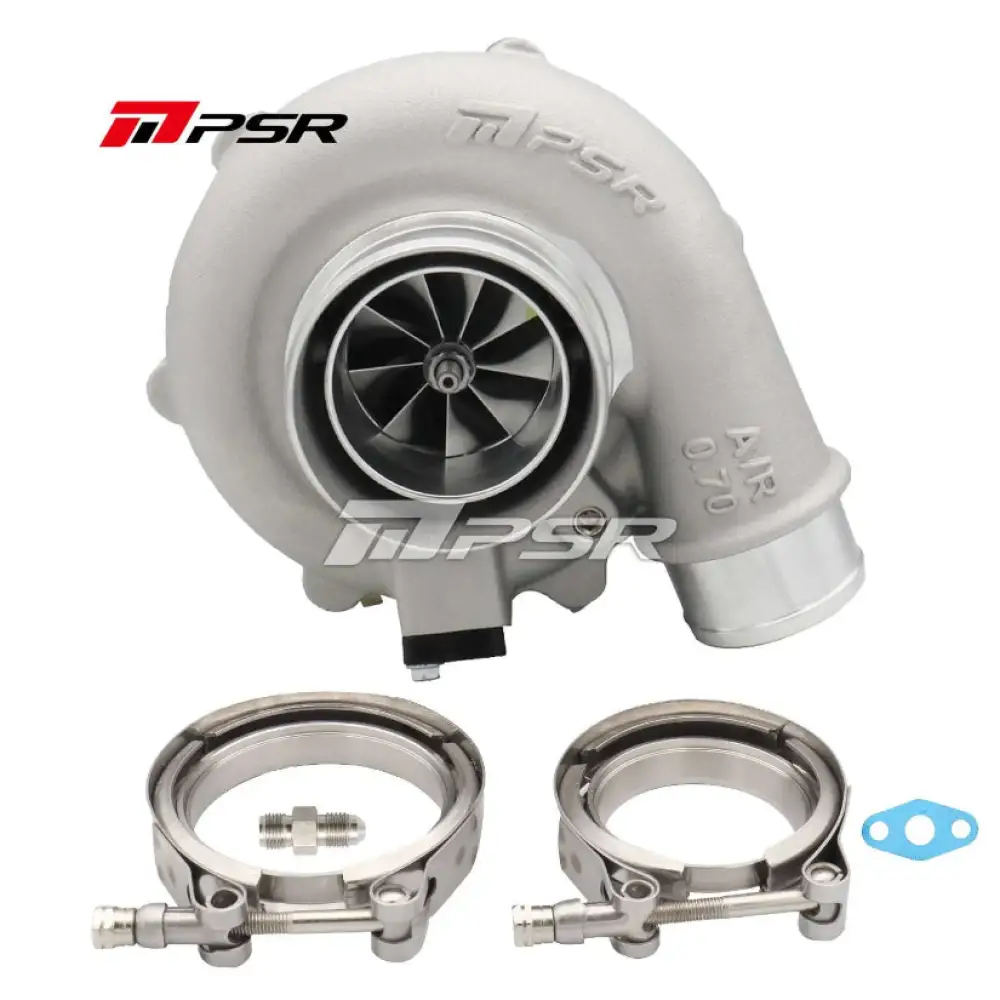

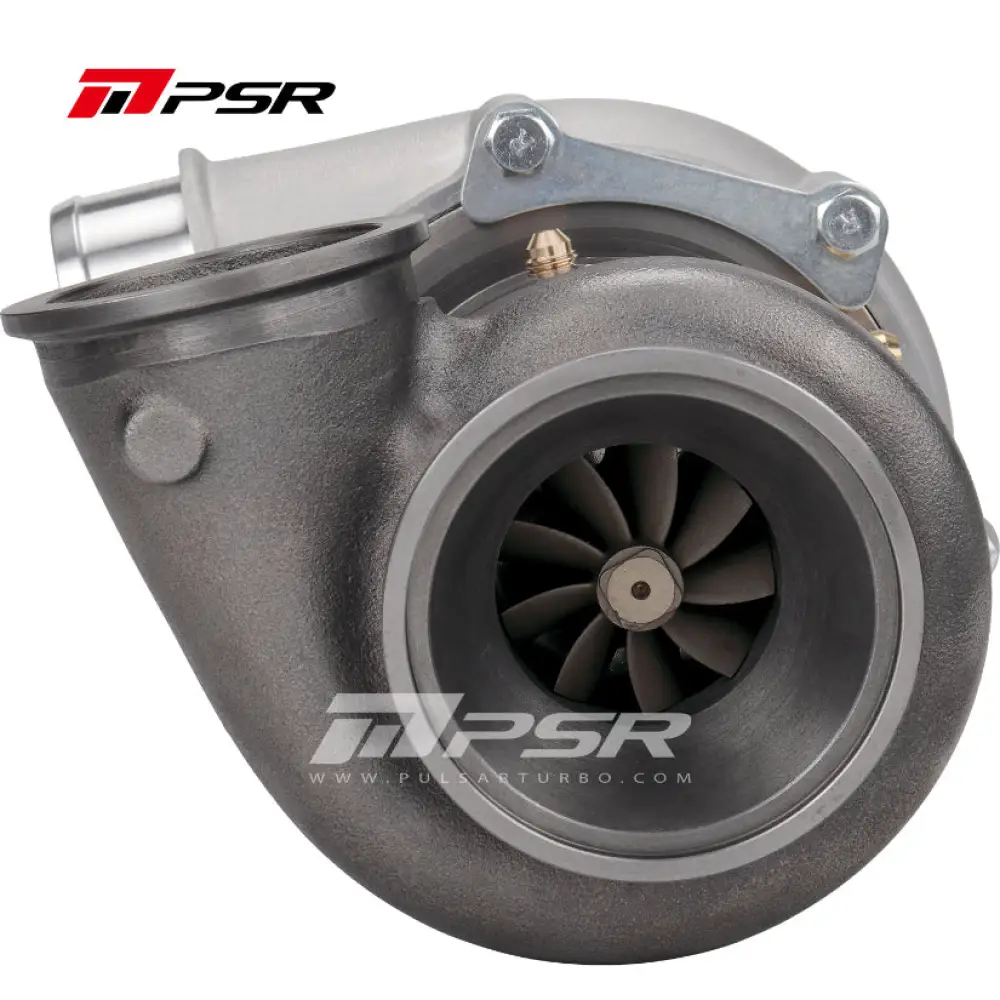

Pulsar PSR4849G 25-550 Turbocharger

Pulsar PSR4849G

• Please note, T51R housing option requires an extra 7 days handling time
• Recommended displacement 1.6 to 3.0 litres with power outputs up to 550hp possible.
• Dual Ceramic ball bearing system provides optimal turbo response &
  better durability by reducing play in the shaft.
• 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
• 9 Blade G-Aero Inconel 713c Turbine Wheel
• Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
• Internally wastegated units come with Billet Actuator(12-14 psi)

SPEC

• Compressor Wheel: 48*60mm
• Turbine Wheel: 54*49mm
• Compressor Inlet: 3″ Hose
• Compressor Outlet: 2″ Hose
• Turbine Inlet: 2.5″ V-Band
• Turbine Outlet: 3″ V-Band
• Water Ports: -6AN
• Oil Feed: -4AN to the Oil Restrictor
• Oil Drain: Std T3 Oil Drain Flange

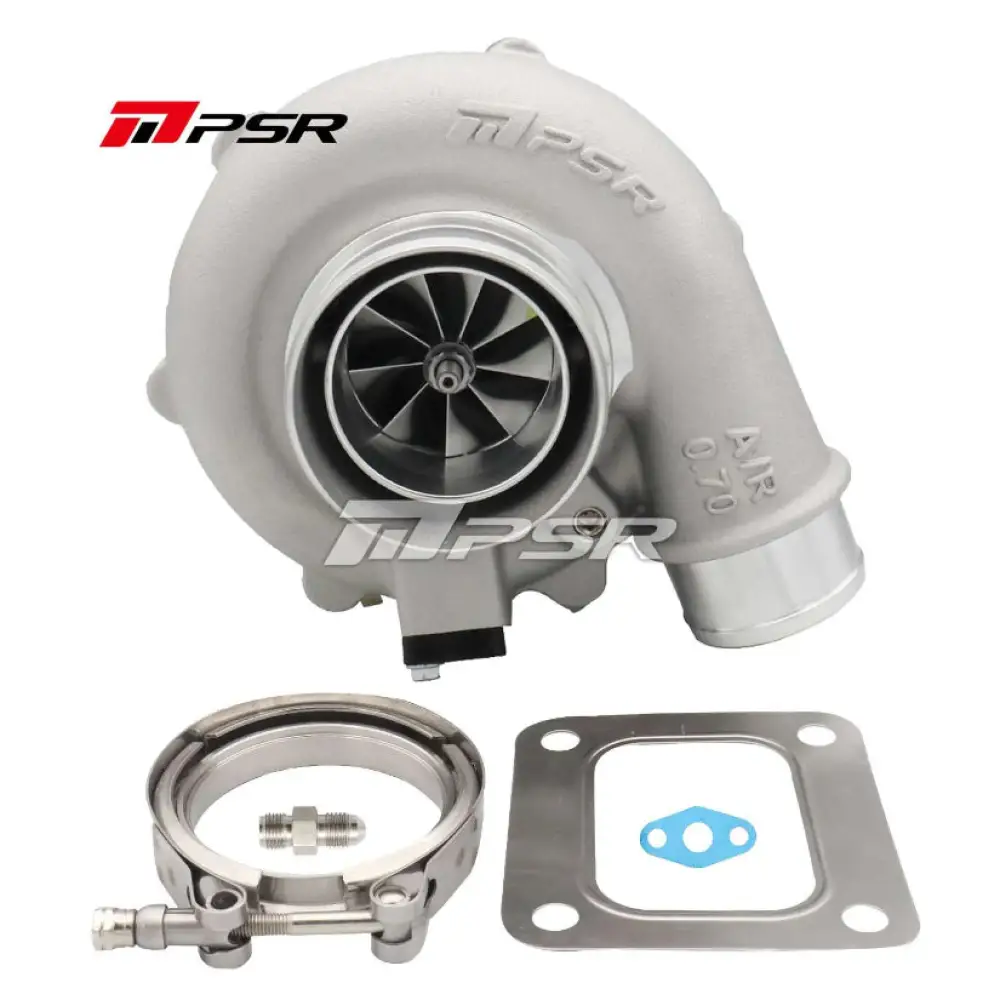

• T3 option is supplied with a V band adaptor as shown in images.
• Internally gated units come with billet actuator.

It's strongly recommended to run water cooling to aid reliability.
