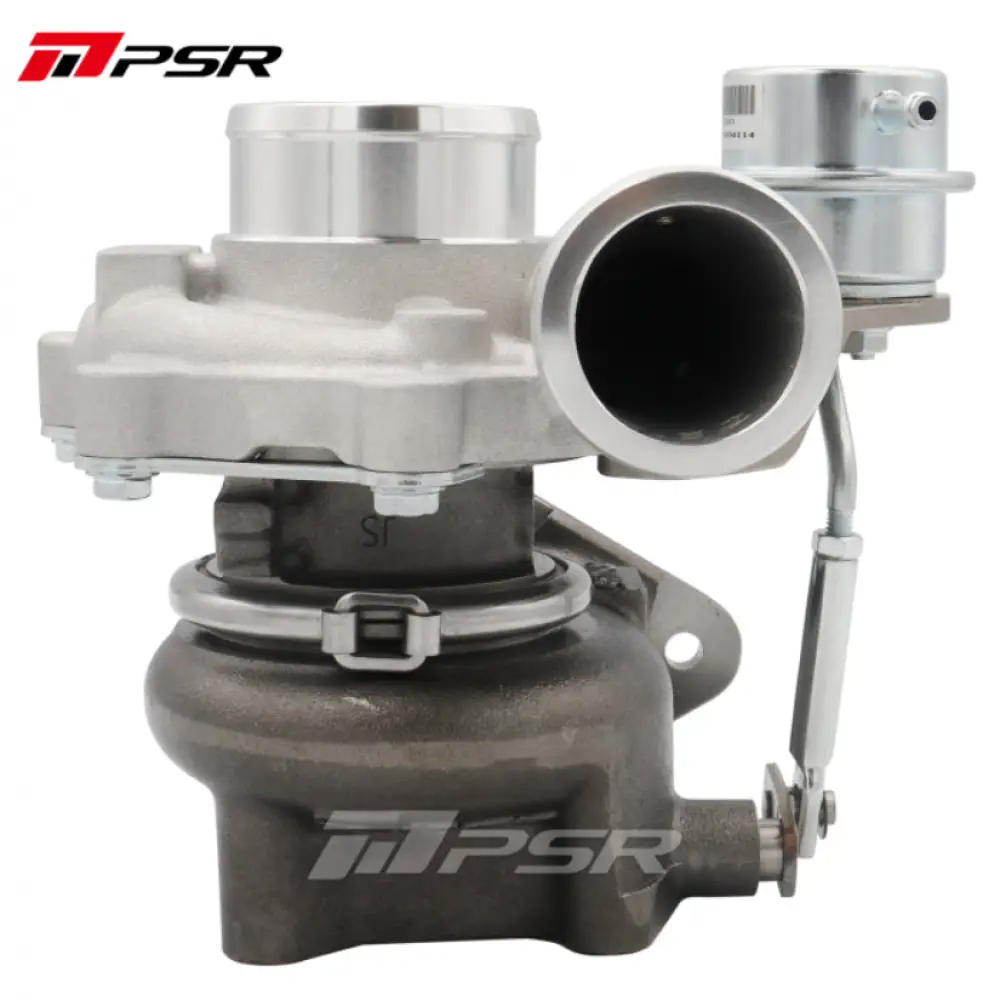

Pulsar PSR3434C 14-200 Turbocharger

PSR3434C / 14-200

• Suitable for smaller capacity engines
• Journal Bearing System, Oil-cooled Center Housing
• Forged Fully-Machined Compressor Wheel with Extended Tip Aerodynamics Design
• 11 Blade 713c Turbine Wheel, 39*36mm
• 360 Degree Thrust Bearing
• Internal Wastegate Turbine Housing, 0.45A/R
• HP Rated at 200HP at the flywheel
• Suitable Engine Size: 0.4-1.0L

Spec

• Bearing Systems: Journal Bearing
• Compressor Wheel: 34*46mm
• Turbine Wheel: 39*34mm
• Compressor Inlet: 60mm Hose
• Compressor Outlet: 50mm Hose
• Turbine Inlet: 3 Bolt
• Turbine Outlet: 4 Bolt
• Oil Feed(excl’): M10 x 1
• Internal Wastegate Turbine Housing A/R: 0.45
