PULSAR GTX3584RS GEN2 Turbocharger

PULSAR GTX3584RS GEN2 Turbocharger

Description



  • New Aerodynamic 10 blade billet compressor wheel flow more air over the stock cast or Gen1 11 blade billet wheel
  • Max Air Flow rate: ~90 lb/min, rated @ 1000 FWHP
  • Larger Turbine Wheel for higher flowability
  • Genuine structure and rebuildable dual ceramic ball bearing system
  • Larger 0.72A/R compressor cover with Anti-Surge 4″ inlet
  • Billet actuator with black anodized coating
  • 3 Layer Stainless Steel 5 Bolt Gasket

Description

  • Compressor Wheel: 67.3*84.4mm(extended tip diameter: 87.3mm)
  • Larger Turbine Wheel for Higher Horsepower: 74*66mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2.5″ Hose
  • Turbine Inlet: T3 Open
  • Turbine Outlet: 5 Bolt
  • Turbine housing internal wastegate hole: 33mm
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange
  • Actuator working pressure: 15psi/10psi/5psi

Application:

Replacement for factory XR6 PT3582 PT3576 Turbos.

  • 2002- BA FALCON XR6
  • 2004- BF FALCON XR6
  • 2008- FPV F6/TYPHOON/TORNADO
  • 2006- TERRITORY
  • 2008- FG FALCON XR6
  • 2008- FG FALCON G6E

    Select Compressor Housing:
    Select Rear Housing
    From $330.90

    Original: $1,103.00

    -70%
    PULSAR GTX3584RS GEN2 Turbocharger—

    $1,103.00

    $330.90

    More Images

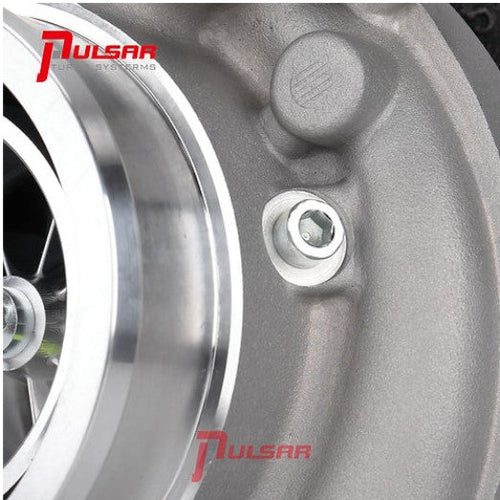

    PULSAR GTX3584RS GEN2 Turbocharger - Image 2
