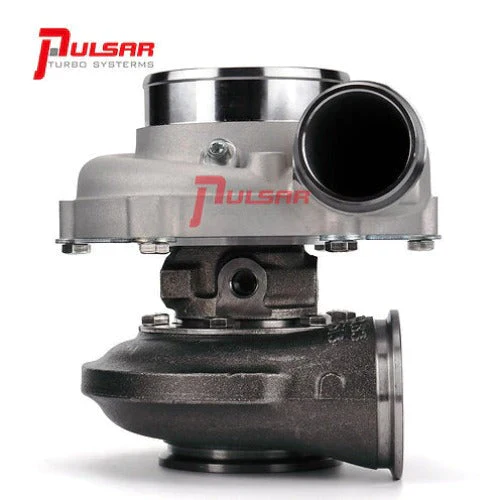

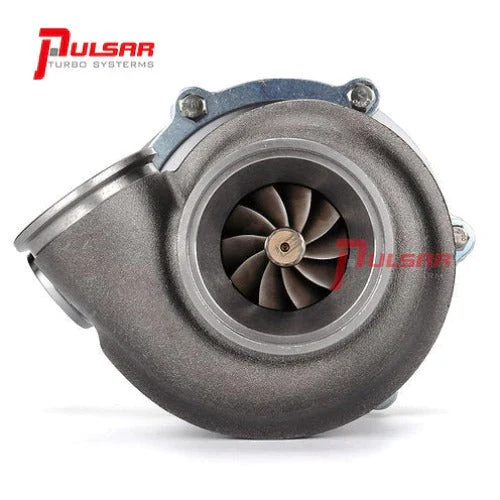

PULSAR GTX3076R GEN2 Turbocharger
Description
- Dual Ceramic Ball Bearing System
- 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Multiple options for turbine housing
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP
- Compressor Wheel: 58*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T3, T4 or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
Compact turbos are great for applications where there is less space
Select Compressor Housing:
Select Rear Housing
From $284.70
Original: $949.00
-70%PULSAR GTX3076R GEN2 Turbocharger—
$949.00
$284.70More Images
PULSAR GTX3076R GEN2 Turbocharger
Description
- Dual Ceramic Ball Bearing System
- 9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
- Inconel 713c 10 Blade Turbine Wheel
- Multiple options for turbine housing
- V-Band Flange kit(s) for the exhaust housing included
- Max Air Flow rate: ~65 lb/min, rated @ 750 FWHP
- Compressor Wheel: 58*76mm
- Turbine Wheel: 60*55mm
- Compressor Inlet: 3″ Hose
- Compressor Outlet: 2″ Hose
- Turbine Inlet: T3, T4 or 2.5″ V-Band
- Turbine Outlet: 3″ V-Band (3.55″OD)
- Oil Feed: -4 AN connect to the Oil Restrictor
- Oil Drain: Std T3 Flange
- Water In/Outlet: M14*1.5
We highly recommended running water cooling for better durability.
Compact turbos are great for applications where there is less space
