VW 1.8T 20V Turbo 4 Cyl 9.5:1 81.5mm ULTRA JE Pistons Forged Pistons JE-367856
VW 1.8T 20V Turbo 4 Cyl 9.5:1 81.5mm ULTRA JE Pistons Forged Pistons JE-367856
You are buying a Set of 4 81.5mm JE Forged Pistons - Ultra Series
Suits: VW 1.8T 20V 4 Cyl Engines
Ultra Series forged pistons from JE are the industry’s strongest, most fully featured pistons available off the shelf.
Product specifications
| Attribute | Value |
|---|---|
| Bore - Actual | 81.50 mm |
| Bore - Oversize | 0.50 mm |
| Compression Height | 32.54 mm |
| Compression Ratio - Actual | 9.5:1 |
| Deck Clearance | 0.14- mm |
| Dome Volume | -3.4 cc |
| Head Volume | 9.5:1 |
| Piston Pin Diameter | 20.00 mm |
| Ring Set Included | UX1004-3209 |
| Rod Length | 144.00 mm |
| Skirt Type | FSR |
| Stroke | 86.40 mm |
| Weight - Nominal | - g |
PLEASE CONTACT US FOR A ACCURATE LEAD TIME ON DESPATCH

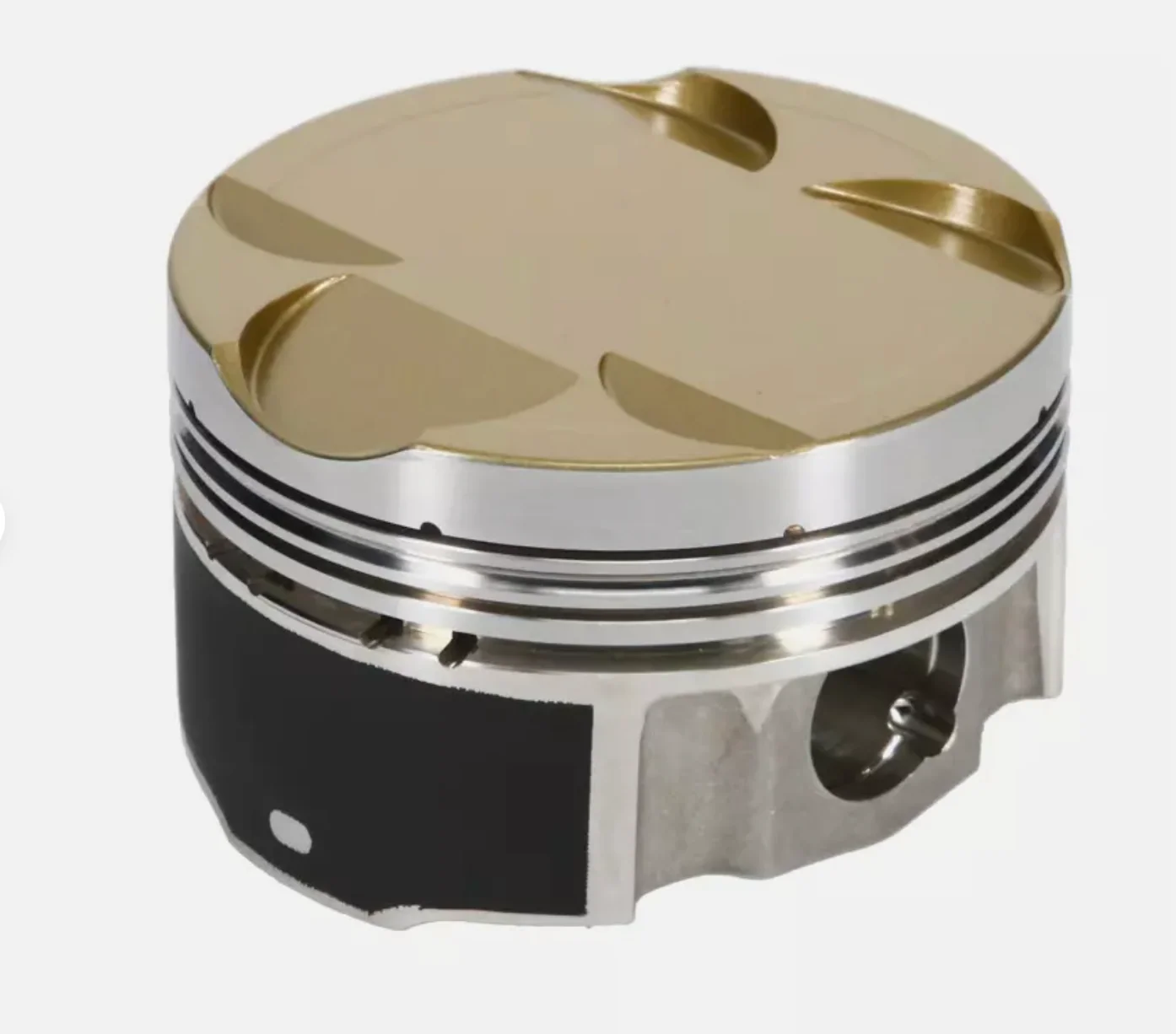

Image is a stock image.
$975.00
VW 1.8T 20V Turbo 4 Cyl 9.5:1 81.5mm ULTRA JE Pistons Forged Pistons JE-367856—
$975.00
More Images
VW 1.8T 20V Turbo 4 Cyl 9.5:1 81.5mm ULTRA JE Pistons Forged Pistons JE-367856
VW 1.8T 20V Turbo 4 Cyl 9.5:1 81.5mm ULTRA JE Pistons Forged Pistons JE-367856
You are buying a Set of 4 81.5mm JE Forged Pistons - Ultra Series
Suits: VW 1.8T 20V 4 Cyl Engines
Ultra Series forged pistons from JE are the industry’s strongest, most fully featured pistons available off the shelf.
Product specifications
| Attribute | Value |
|---|---|
| Bore - Actual | 81.50 mm |
| Bore - Oversize | 0.50 mm |
| Compression Height | 32.54 mm |
| Compression Ratio - Actual | 9.5:1 |
| Deck Clearance | 0.14- mm |
| Dome Volume | -3.4 cc |
| Head Volume | 9.5:1 |
| Piston Pin Diameter | 20.00 mm |
| Ring Set Included | UX1004-3209 |
| Rod Length | 144.00 mm |
| Skirt Type | FSR |
| Stroke | 86.40 mm |
| Weight - Nominal | - g |
PLEASE CONTACT US FOR A ACCURATE LEAD TIME ON DESPATCH
Image is a stock image.
