Pulsar PSR7782G 45-1500 Turbocharger

Pulsar PSR7782G

Please note, T51R housing option requires an extra 7 days handling time

Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

13 Blade PTG-Aero billet compressor wheel with extended tapered tip technology

9 Blade PTG-Aero Inconel 713c turbine wheel

Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports

Water fittings included with super core

8 Options in Turbine Housing

SPEC

Compressor Wheel: 76.6*109.2mm

Turbine Wheel: 89*81.6mm

Compressor Inlet: 5″ Hose

Compressor Outlet: 3″ V-Band

Turbine Inlet: 3″ V-Band/T4 open/ T4 divided

Turbine Outlet: 3.5″ V-Band

Water Ports: -6AN

Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

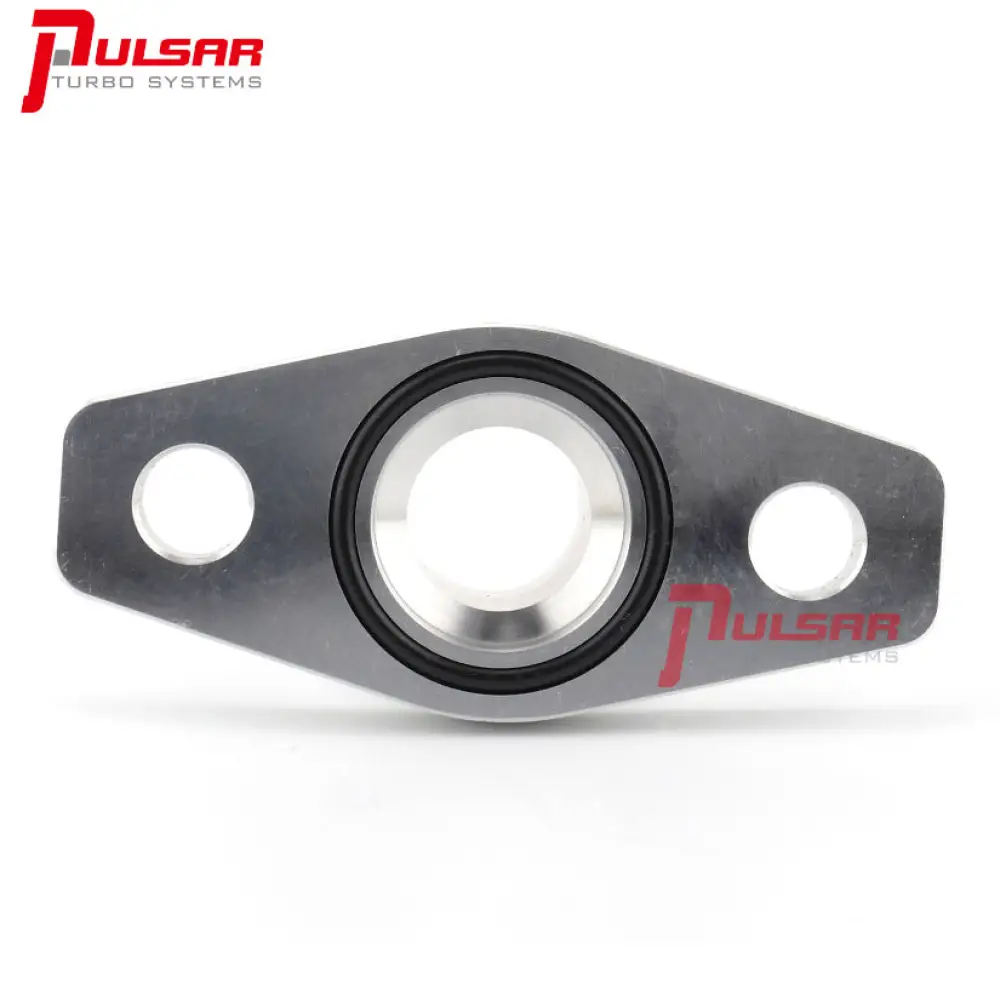

Oil Drain: -12AN(O-Ring sealed Flange Kit Incl’)

It's strongly recommended to run water cooling to aid reliability (needed for warranty)
