Link Ethanol Content Sensor #ECS
Link Ethanol Content Sensor #ECS
The Ethanol Content Sensor measures the ratio of ethanol to petrol in a flex-fuel vehicle. This sensor also measures fuel temperature. Compatible with all current Link Wire-In and Plug-In ECU. Uses 1 Digital input on the ECU. The sensor is fitted to the vehicle’s fuel return line anywhere between the fuel pressure regulator and the fuel tank.

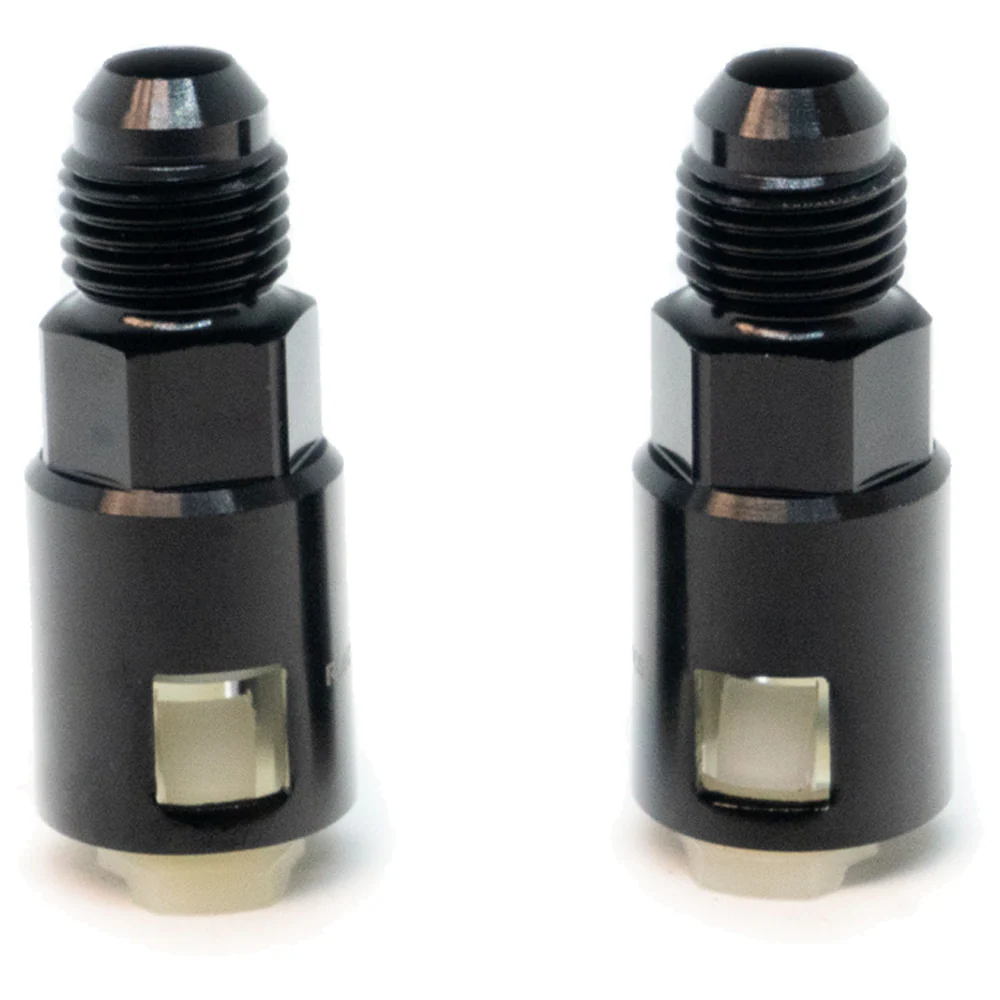

AN-6 Fittings
Includes plug and pin kit
Technical
The pinout is indicated on the sensor itself (from left to right looking into connector on sensor) as :
1.) Vcc (+12V supply)
2.) GND (ground)
3.) Vout (digital signal out)
What's in The Box
Link Ethanol Content Sensor #ECS
- Ethanol Contact Sensor
- AN-6 Fittings
- Plug and Pins
Downloads
 |
|
|
|
