Quality You Can See - Flow Rates You Can Trust

If you are looking for a water methanol injection nozzle look no further. ProMeth offers the highest quality, most accurate flow rates and more sizes then all of our competitors combined. Nobody offers the ability to fine tune your water methanol injection system or direct port better than ProMeth. Beware of competitors claiming to offer the same quality and performance with little to no proof to show for. Take a look at our Instagram page and it's easy to see some of the many shops and customers who use & trust ProMeth nozzles.

Click here to view our Instagram page.

ProMeth dedicated to designing, engineering and manufacturing the finest quality water methanol injection systems and components for both street and strip applications. With over ten years experience working with many top engine builders, race teams and shops. We offer unmatched level of experience, knowledge and service you can’t get anywhere else.

Need help selecting the right water methanol injection nozzle(s) for your system or direct port? Give us a call and a knowledgeable, experienced water methanol injection technician will review your needs and explain which nozzle and mixture will best suit your needs.

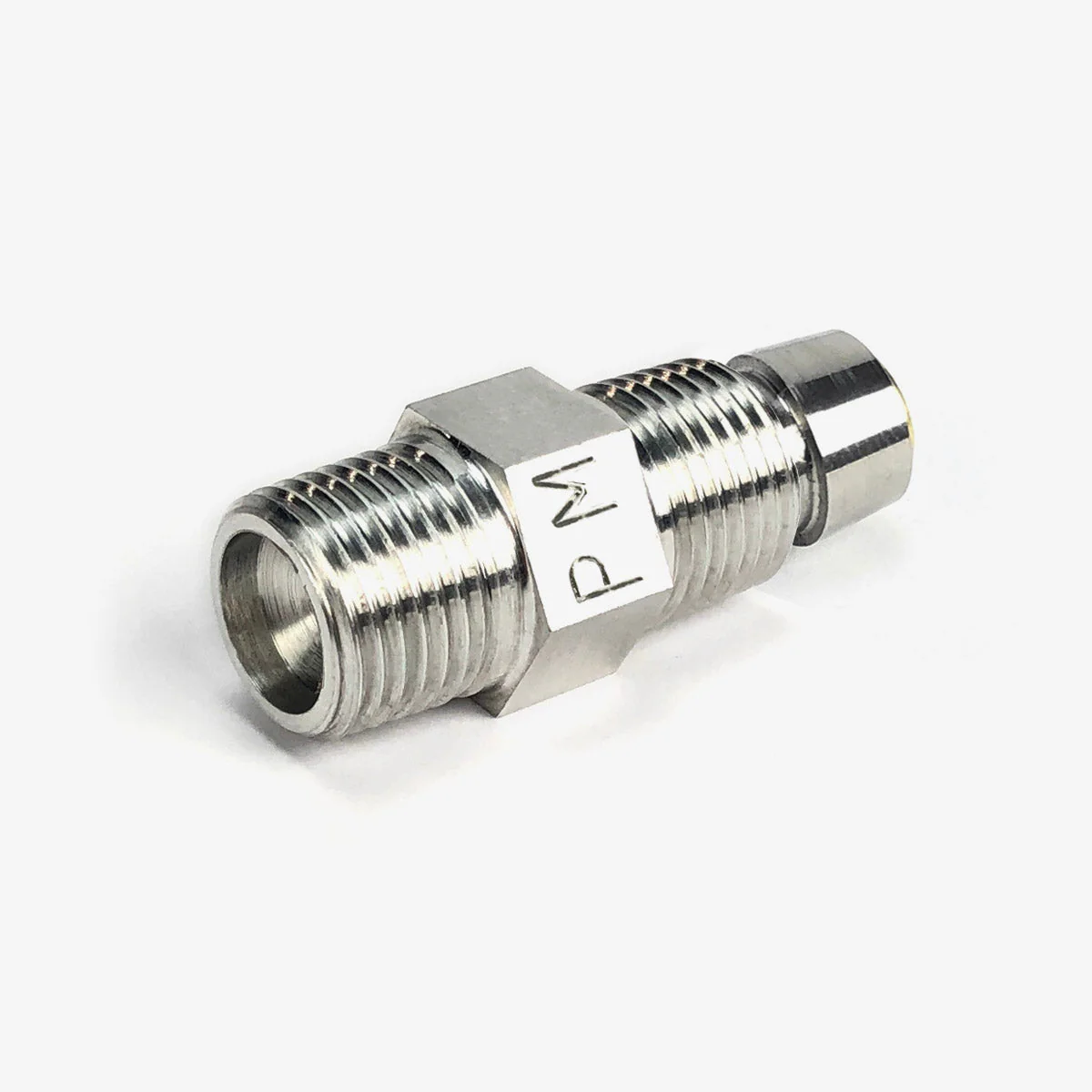

Features Include:

316 Stainless steel
7/16" wrench flat
Bayonet twist lock filter
30 micron mesh filter
Orifice size stamped on each nozzle
1/8th NPT threads on both sides
100% methanol compatible

Special Notes:

Nozzle flow rates are based at 100 psi.
63 cc per minute is equal to 1 GPH
1 cc is equal to 1 ml

Quick Jetting Guide:

100% water target 8-10% of fuel flow
50/50 mix target 15–20% of fuel flow
100% methanol target 20–25% of fuel flow

If you don't know fuel flow you can do the following.

Horsepower @ crank x .5 = CC jetting (pure water)
Horsepower @ crank x 1.0 = CC jetting (50/50 mix)
Horsepower @ crank x 1.5-2.0 = CC jetting (pure methanol)

For example. 1000 horsepower. You would use 500cc pure water, 1000cc 50/50 mix and between 1500-2000cc pure methanol. Keep in mind these are figures to start with and do not take into consideration all the variables that we have found to affect jetting size. There are many other variables to consider. If you need help selecting a nozzle size feel free to call us directly for technical help.

Contents Include:

Nozzle (1)

Special Notes:

Nozzle flow rates listed are based at 100 psi.
63 cc per minute is equal to 1 GPH
1 cc is equal to 1 ml

Instructions:

Returns & Conditions:

ProMeth is a company built on Customer Satisfaction and Service. Your complete satisfaction is our priority. If you are not completely satisfied with a product that you have purchased from ProMeth, you may return the new, unused part within 30 days from the purchase date for a refund, exchange or store credit.

To Make A Return:

Step 1. Call customer service at (801) 447-2559 to receive a RMA (Return Merchandise Authorization). RMA will be emailed to the customer.

Step 2. Mail your item(s) along with your RMA, original receipt and contact info (Name, phone number, email, address, and reason for return) to the address below.

ProMeth, Inc.
538 Maulhardt Ave.
Oxnard, CA 93030

Step 3. Once we receive the item(s) we will contact you by phone and or email letting you know we not only received your returned goods but that they are in acceptable condition for return. At that time we will allow you to determine your choice of refund, exchange or store credit.

Terms & Conditions For Returns

Returns must be filed within 30 days of receiving product.
Returns must be handled directly with ProMeth and not its dealers.
You are the original purchaser and can provide proof of purchase.
The items were purchased new from ProMeth or authorized ProMeth dealer.
All returns must be authorized before returning an item.
Items are unused in original packaging.
No returns on used items.
We are not responsible for loss or damaged goods being returned.
Original shipping charges are non-refundable.
Unauthorized returns are not accepted and will be returned to customer

Warranty & Conditions:

ProMeth is a company built on providing high quality water methanol injection products. All ProMeth water methanol injection systems/kits are warranted free from defects in materials and workmanship for a period of 3 years from the original date of purchase. All ProMeth water methanol injection parts/components sold individually are warranted free from defects in materials and workmanship for a period of 1 year from the original date of purchase.

To File A Warranty Claim:

If you believe you have received a defective part or experienced a part failure that should be covered under warranty, please follow the steps below.

Step 1. Call customer service at (801) 447-2559 to discuss the problem, possible solutions and if warranty return deemed necessary obtain a Return Merchandise Authorization (RMA).

Step 2. Mail your warrantied part(s) to the address below. Make sure to include the following. RMA# on the outside of the box Dated proof of purchase Name, phone number, email, address, reason for return.

ProMeth, Inc.
538 Maulhardt Ave.
Oxnard, CA 93030

Step 3. ProMeth will notify you by phone and or email letting you know that we have received your warrantied parts and that they were received in acceptable condition for return and warranty evaluation.

Step 4. ProMeth will evaluate the product to determine if the failure resulted from a defect or from abuse, improper installation, misapplication or alteration.

Step 5. ProMeth will at its sole discretion return, repair or replace the product while notifying the customer of its findings. If any ProMeth product is determined defective, buyer’s exclusive remedy is limited in value to the sale price of the good.

Terms & Conditions For Warranty

3 year warranty on purchase of systems/kits.
1 year warranty on purchase of individual components/parts.
You are the original purchaser and can provide dated proof of purchase.
The items were purchased new from ProMeth or authorized ProMeth dealer.
Warranty must be filed within 3 years from date of purchase for kits/systems and within 90 days for purchase of parts.
Warranties must be handled directly with ProMeth and not its dealers.
All warranties must be authorized and receive an RMA# before returning an item.
RMA# must be displayed on the outside of the package containing the returned part.
Unauthorized returns or packages that do not have an RMA# displayed on the outside of the package are not accepted and will be returned to customer.
We are not responsible for loss or damaged goods being returned.
All returns must be shipped freight pre-paid by the customer
In no event shall ProMeth be liable for incidental or consequential damages

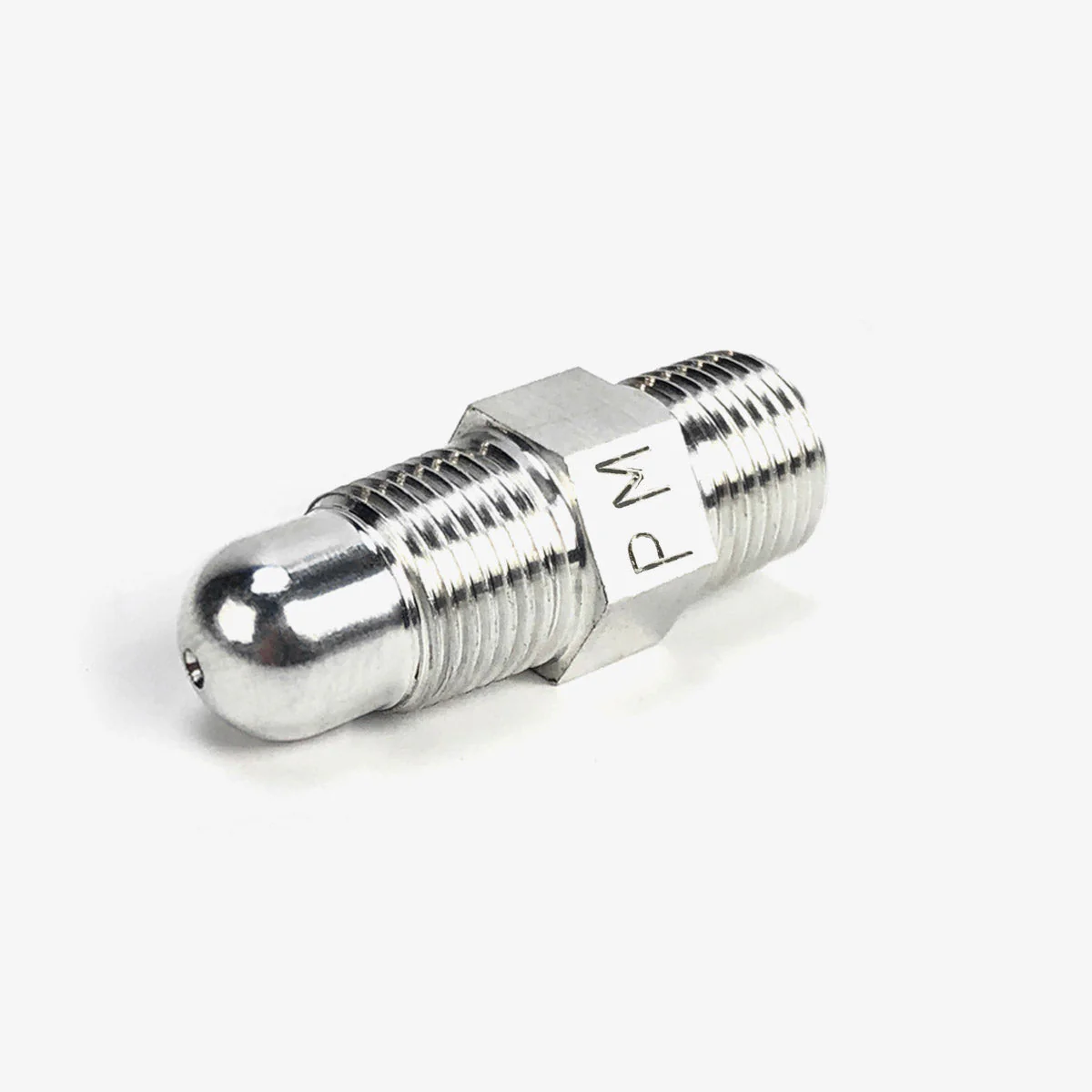

Prometh Methanol Nozzle Jet

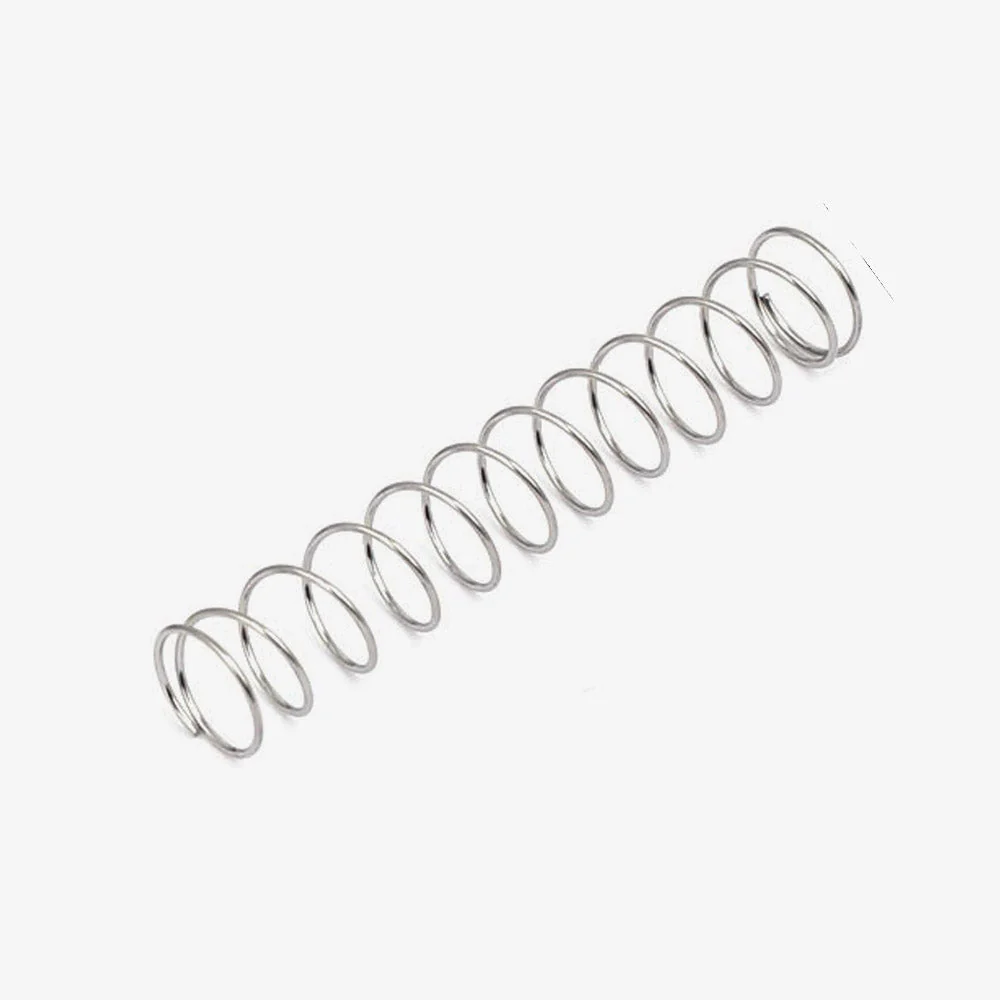

Replacement Nozzle Spring

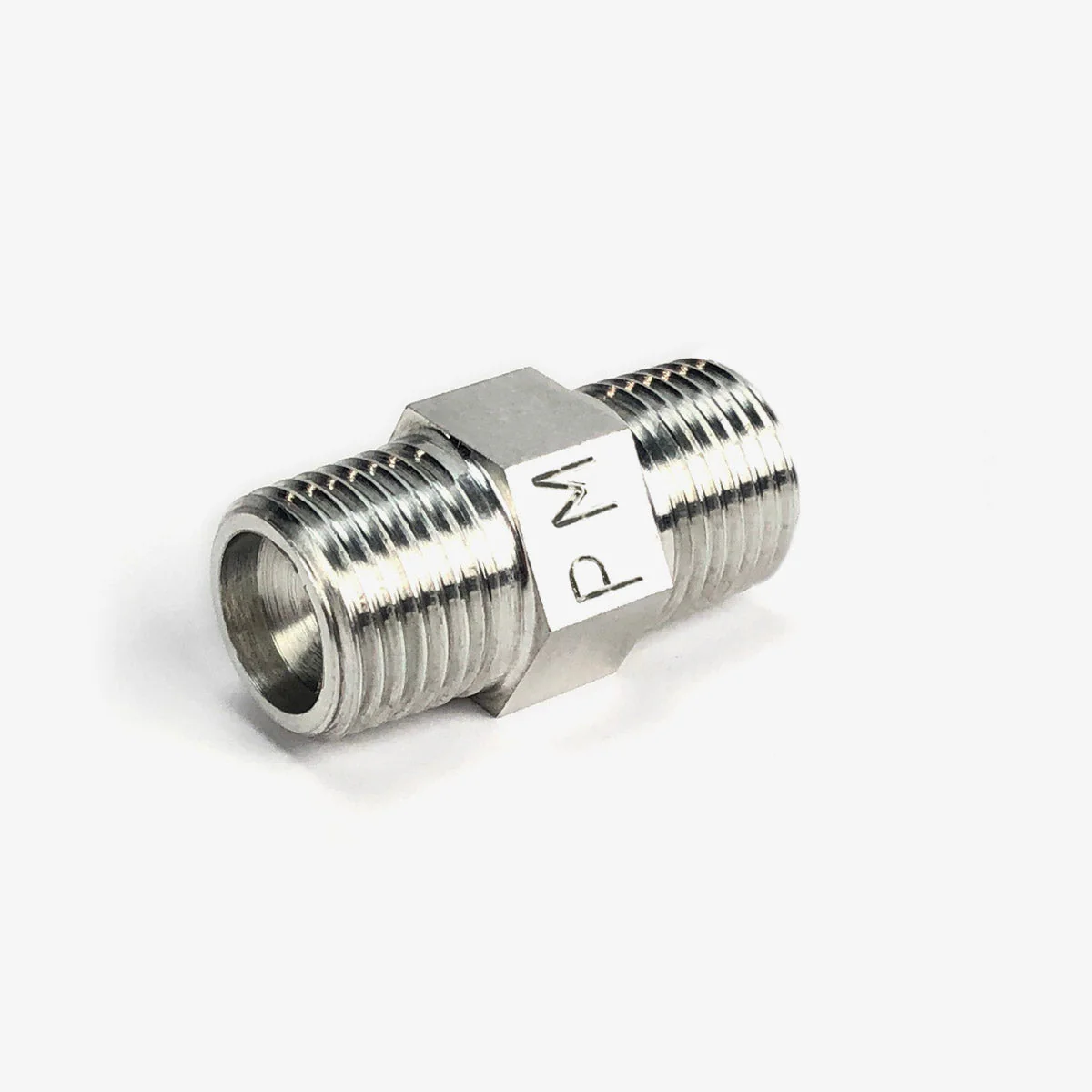

Replacement Nozzle Body

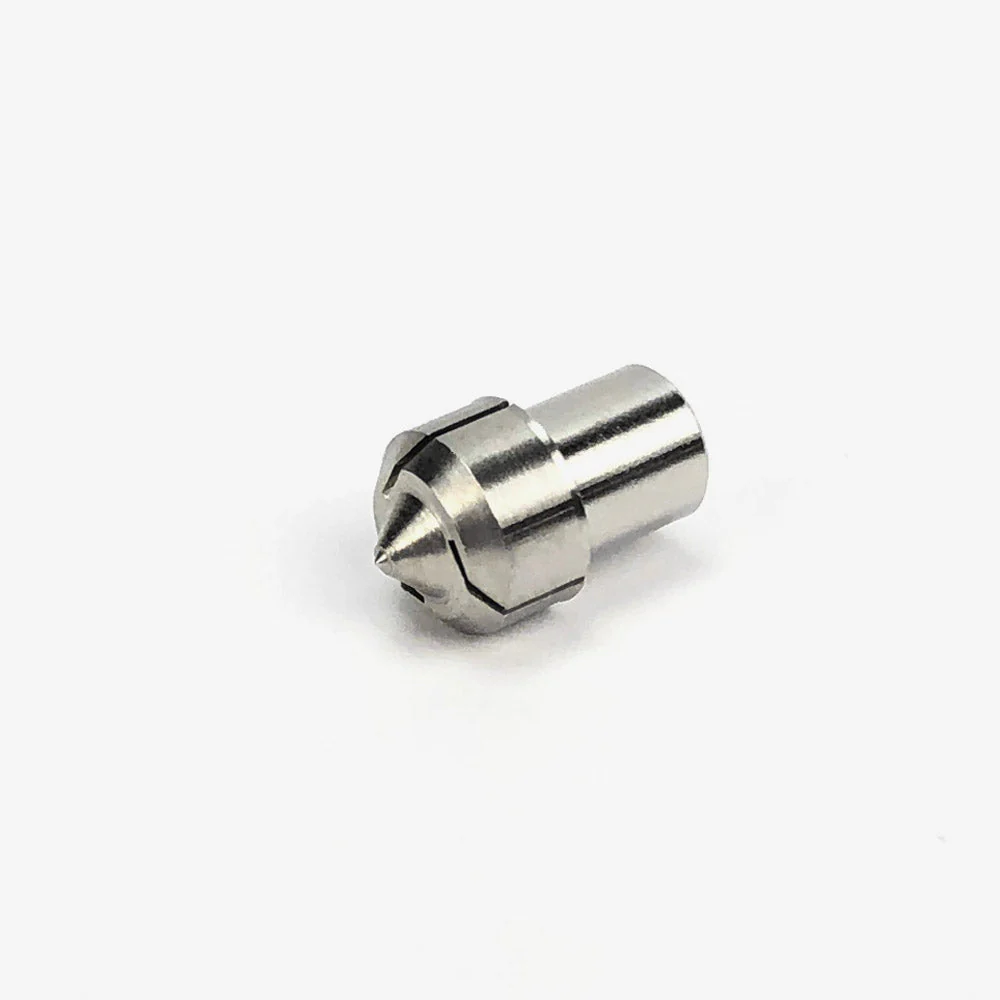

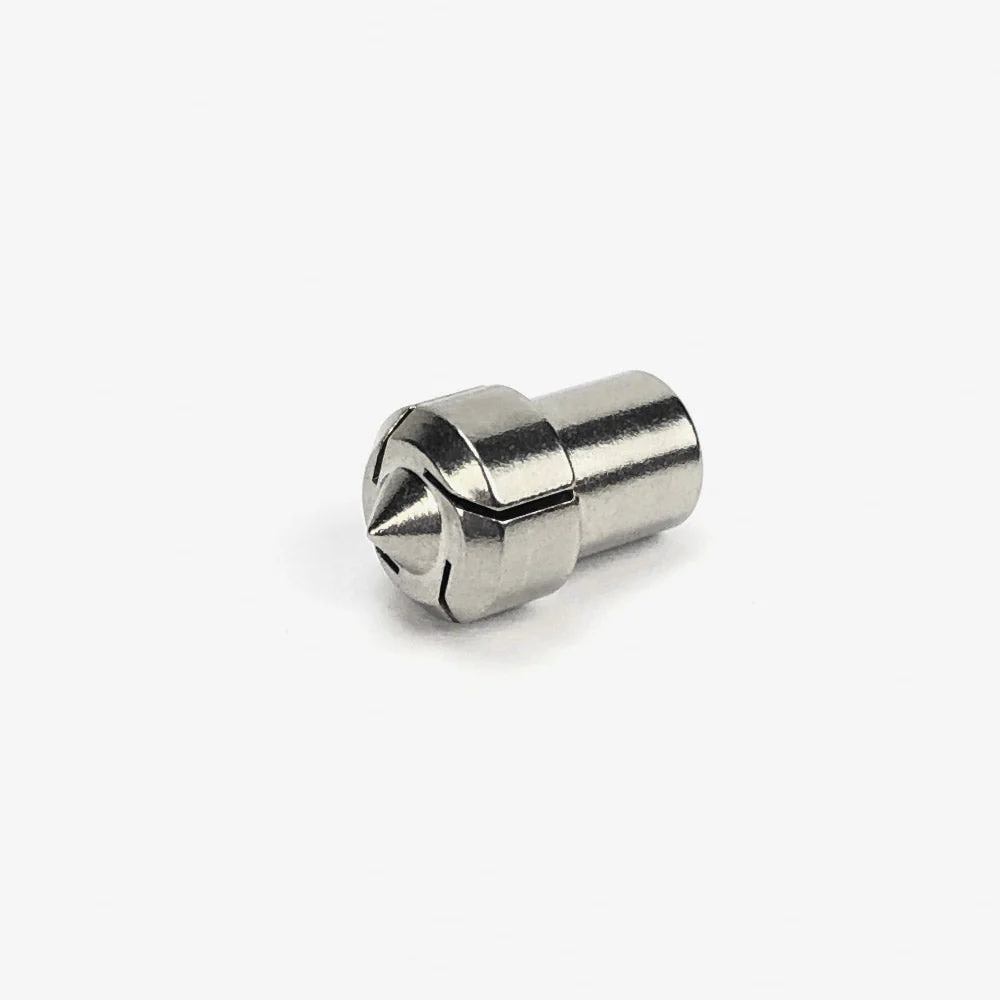

Replacement Nozzle Atomizer

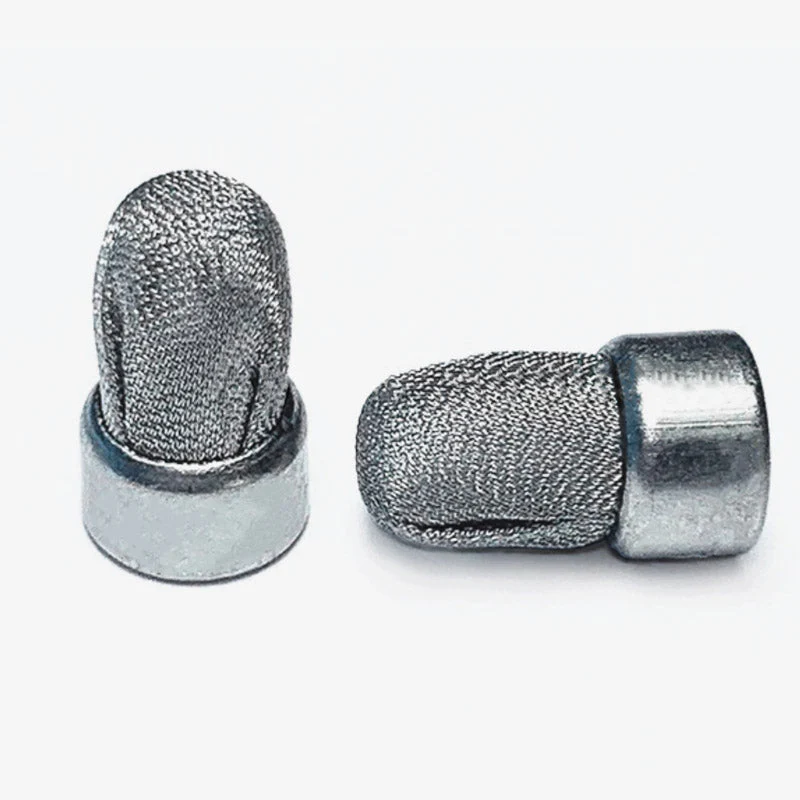

Replacement Nozzle Filter

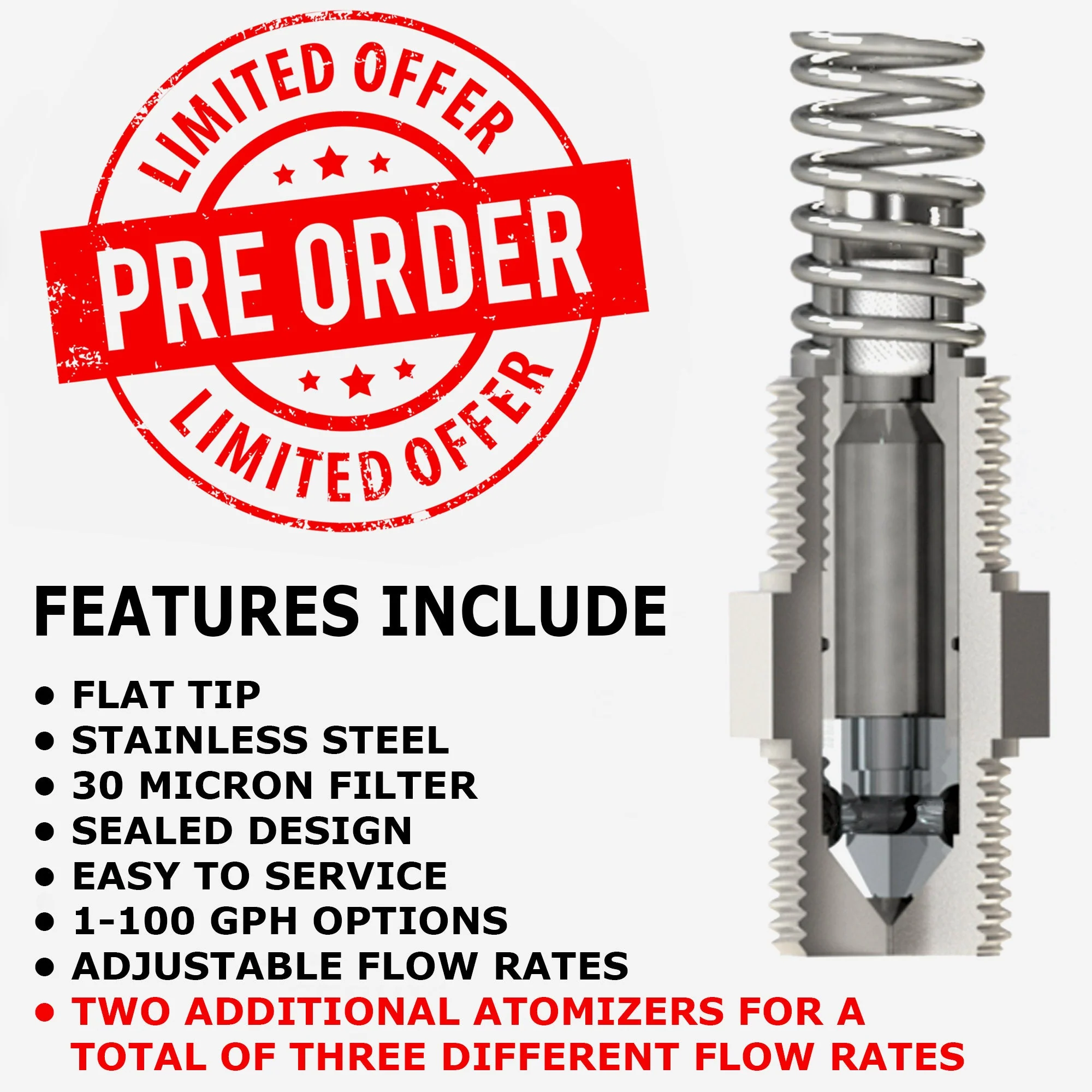

Flat Tip Nozzle

Flat Tip Nozzle

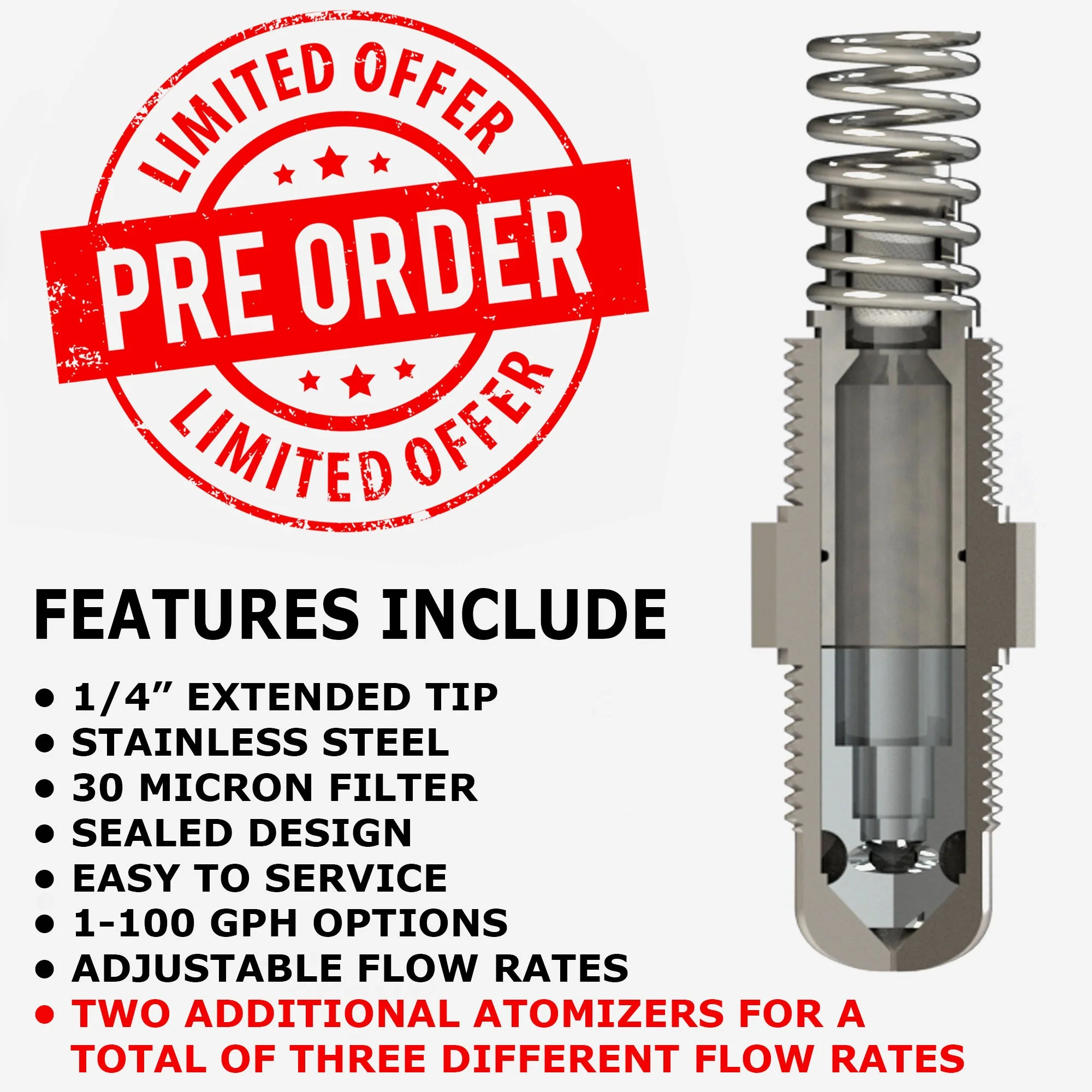

250" Extended Tip Nozzle Without Check Valve

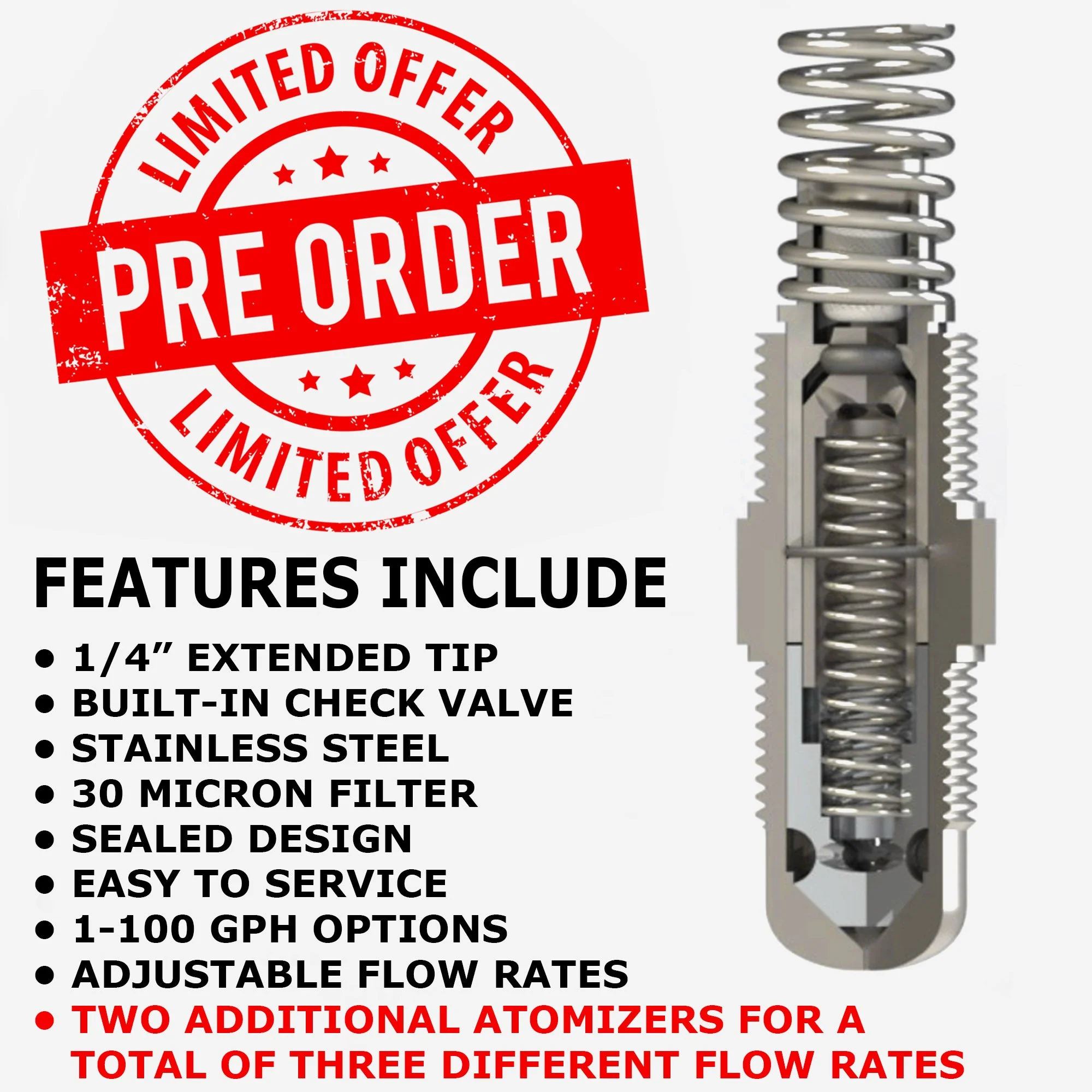

250" Extended Tip Nozzle With Check Valve
